Space 1999 Konami Scale Landing Pad Display Base

I recently added a new item to my Moonbase Beta ETSY Store: A Konami Scaled Landing Pad Display Base. The display base is rather large in comparison to the Eagle, but it is only a bit undersized, and looks really awesome when done.

I liked it enough to make a kit out of it that was nice enough that I would be willing to sell it as a kit so people could make their own very affordable Konami display. It would take some work on their end, but not anything really difficult. This was a very fast project.

As I had the 3D parts already designed for a smaller base I had made for Konamis (which I sell on Shapeways as a series of separate parts) scaling them up, adapting them to work at this scale, was not that hard.

(NOTE: This kit does not include the Long Building. I figured no one would be able to display it anywhere, and if you want to add that, it shouldn’t be very hard with some foam-core or matte board and a sharp X-Acto knife.)

I separated out the parts so the rim is made up of 9 – 10 (depending on the diameter you use) separate pieces which have a slot for the foam-core base, and the House could fit on my printer in two parts, and the docking tube could extend/retract. I also made lights for the landing pad.



The Kit Includes

The kit features all of the 3D printed parts needed:

  • 10 Rim Pieces – (two variants so you can break up the design)
  • House Rear Section
  • House Front Section (with slot for docking tube)
  • Docking Tube (extendable)
  • Window Inserts
  • Landing Lights – You get way more than enough



The Kit Does NOT Include

This is what the user has to provide:

  • Black (or painted) foam core board – one circle measuring 28cm or 11″ in diameter
  • Red paper (or white paper) printed with the cross design – one cross with each segment measuring 2 3/4″ or 7.5cm. (I searched the internet and found a few interesting landing pad designs which I printed on red paper which worked beautifully!)
  • Crazy Glue to glue the two house halves together. Also to glue the windows in. You can also glue the rim edges together if you like, though they stay fairly nicely in place by friction, which allows you the bonus of breaking the display down and storing it easily. Crazy Glue can also be used for the lights, but I recommend White Glue for that job.
  • Konami Eagles!!! I presume you have at least one of these if you’re buying this kit.



Instructions

1) Cut a 28cm (or 11″) diameter circle from black foam core (or any other color painted black). I used Dollar Tree black foam core.

You will note it doesn’t have to be a perfect for the final result to look great!

2) Red Landing Cross. I took red paper and overprinted a gray pattern on it that I found on the internet. Without getting specific, search here and you will find some.

Print it as large on an 8.5 x 11″ sheet as you can. The Cross width (per section) is 7cm (2 3/4″). The whole cross can fit on one sheet.

3) Glue the two halves of the House together:

4) Slot in the Rim Edges. (Depending on your exact diameter, there may be a gap, but that goes under the house out of sight.) I include enough pieces to fit a base somewhat larger than I suggest. 9 pieces will fit mine, with a gap. I provide 10 pieces just in case.

5) Add Lights – This is the tricky part. Don’t worry, I include way more lights than you need. I start at one inner corner and put down the first light. Then I  add a light on one outer corner so the distance is the same from the corner to the light. Do this all around the landing cross.

  • Add Lights To All Corners, so they are the same distance from each corner, outer and inner:

  • Add a light to each mid-length between each corner light:


(Repeat all around the cross.)

  • Add a light in between each middle light and its corner:


(Repeat all around the cross)

This is a great method because it’s far easier to find a mid-point between two things than try to line up 5 of something with perfect spacing. DIVIDE AND CONQUER!

6) Glue in the windows (or if you like, use black cardboard. Whatever works for you.)

That’s really it. You’re done. And when you’re done it should look something like this:

(Forgive my rough quick placement of the rim pieces… I really banged this project out in an hour once the parts were printed.)

Variants:

  • Cut the cross out of the foam-core for a sunken landing cross

Space 1999 Items For Sale

shapeways-shop-front

I have made some items for sale on Shapeways that pertain to Space:1999, the TV show.

These include items I’ve blogged about before, mostly during development when the models were printed on my home printer. Those were ok, but the size (especially of the smaller scaled items) meant that my home printer’s integrity was nearing minimum – ie: It was nearing the smallest scale I could print well.

However, Shapeways can print at a higher resolution, and I found the results quite clean and presentable.




Dinky Scaled Eagle Pods

The wonderful Dinky Eagles, produced in the 1970s, are revered by toy collectors and fans of the TV show. They came with one pod each, and Dinky made two versions: one with a passenger pod, and one with a freighter pod. The passenger pod was surprisingly accurate, though the freighter pod looked nothing like the pod used in the TV show. It was fun, however, and had a magnetic winch and four hazardous waste containers. But completely inaccurate.

So I made a pod model that plays the part of two of the alternate pods from the TV show: the pallet pod (which is a flatbed pod suitable for carrying multiple waste containers) and a winch pod (which is used to hoist and store containers in the nuclear waste depots.)

shapeways-dinky-eagle-pod-with-winch-01

Here is the Dinky-scaled pod, which comes in two pieces: The pod itself, which is a flatbed pallet pod, but with a second part that is the winch.

Here it is as seen in the TV show:

eagle-winch-pod

A little paint and you can have a very accurate model. However, since the toy is not weathered, the pod works pretty well completely untouched. (Though it’s advisable to paint the underside legs and engine bells.

Here is the pod alone, without the winch:

shapeways-dinky-eagle-pod-empty-01

I also have available on Shapeways the nuclear waste container. (Originally I modeled this in multiple pieces so I could print it at home in white and black so the black stripes would be clean and perfect. This didn’t translate well to Shapeways. The parts were too tight. So I made a single solid barrel available instead.)

It is hard to see with these photos, but the flatbed is ridged like the original, not smooth. The Shapeways render makes this more obvious:

shapeways-pallet-pod-rendering-02

This is what the pallet pod looked like in the TV show being unloaded by conveyor belt:

You may notice the bars at the top. These do not exist on the real pod model, but for the Dinky to pick it up and drop it, those had to be added. And the mechanism feels great! Fits perfectly!

eagle-unloading

Here is my home-printed pallet pod with containers, next to the Konami version.

eagle-freighter-pods-dinky-konami-attached




Dinky Scaled Laboratory Pod

This has been in demand. I have had a lot of people in Gerry Anderson or Space:1999 forums request this one. It’s now available on Shapeways. It’s the Laboratory pod, seen here in a highly accurate larger model.Eagle20Lab1

Here it is, printed on my home printers, cut up into appropriate pieces and printed in two colors:

dinky-eagle-lab-pod-01

dinky-eagle-lab-pod-02 dinky-eagle-lab-pod-03 dinky-eagle-lab-pod-04

dinky-eagle-lab-pod-05

This is Shapeways’ rendering of it:

shapeways-dinky-laboratory-pod-01

Booster for Dinky Eagle

A companion piece for Laboratory Pods.

Shapeways-Dinky-Booster-03

Shapeways-Dinky-Booster-04 Shapeways-Dinky-Booster-01 Shapeways-Dinky-Booster-02

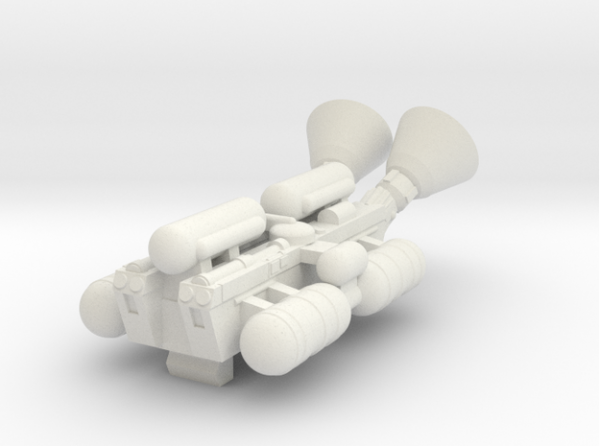

This is the ETSY preview image:

625x465_14599257_8828642_1465176082




Dinky Scaled Passenger Pod (Replacement)

Sometimes people buy an Eagle incomplete, or they lost their original passenger pod. This is a vairly accurate pod that replaces the original. Fits perfectly, and is a bit more show-accurate than the original.

shapeways-dinky-passenger-pod-01




Here are links to the models, if you are interested:

Dinky-Scaled Pod (acts as either pallet or winch pod)

Dinky-Scaled Winch (sits on the floor of the flatbed pod)

Dinky-Scaled Waste Container (sits on the floor of the flatbed pod)

Dinky-Scaled Laboratory Pod (does not yet have the booster pack on top)

Dinky-Scaled Booster Pack (goes well with Laboratory pod)

Dinky-Scaled Passenger Pod (good for replacement of lost pods)



I also made available decal sheets (which you can print on sticker paper or decal paper) that wrap around the barrels, and looks like this (this is a sub-section. The full sheet includes many more copies of the barrel decal and the Alpha symbol, and also contains the smaller Konami version.

eagle-decals-detail-01

You can download the full sheet as a PDF (very clean vector art) here – Dinky And Konami Eagle Decal Sheet PDF File – and the instructions on how to use them here – Dinky And Konami Decal Instruction Sheet PDF File


Konami Scaled Eagle Pods

I also created Konami-scaled Eagle Pods, which are just over 4cm long. They fit nicely into the Konami Eagle, and do not need extra “stuff” on top of the pod to make it fit like the Dinky did.

Here is a photo of one. I painted the winch barrels grey. You don’t have to.

Winch Podshapeways-konami-eagle-winch-pod-05

shapeways-konami-eagle-winch-pod-01

shapeways-konami-eagle-winch-pod-02

And the whole kit, unassembled:

shapeways-konami-eagle-winch-pod-06

Shapeways rendering for better detail:

shapeways-konami-winch-pod-rendering-01

Pallet Podshapeways-konami-eagle-winch-pod-04

Here it is unassembled, (shown with decal sheet, not included, but you can download it at the bottom of this section)shapeways-konami-eagle-winch-pod-07

Shapeways rendering (for better detail)

shapeways-konami-pallet-pod-rendering-01

These two pods come as two different models, rather than a single pod, with add-ons. This is only because I made the Dinky version more efficient, and have not had time to convert the Konami pods. But this way, you don’t have to share the pod itself. Get the whole kit for either the Winch or Pallet pods.

Konami Scaled Winch Pod (all parts, including winch barrels and housing, legs, engine cones, unassembled)

Konami Scaled Pallet Pod (all parts, including 8 waste containers, legs, engine cones, unassembled)

eagle-decals-detail-01

You can download the full sheet as a PDF (very clean vector art) here – Dinky And Konami Eagle Decal Sheet PDF File – and the instructions on how to use them here – Dinky And Konami Decal Instruction Sheet PDF File




Moon Buggy

I won’t go into too much detail here, since I don’t have a lot of photos of these, but for now you can find links to my Moon Buggies on Shapeways, and see the few photos I do have.

What you should know, however, is that they come in two separate pieces you must order separately because Shapeways does not offer a convenient way to package projects that require multiple parts:


Moon Buggy for 22″ Round 2/MPC Eagle Model

This version is scaled to the new 22″ Eagle model kit.

Note: This one is far more accurate. I worked with an Amphicat enthusiast to fix some scaling and proportion issues, as well as adding a fair amount of more accurate detail. This one adds ridge detail at the back, the engine vents, engine bumps under the seats, even exhaust ports, more accurate dash, and a lot of other details you would not catch in the smaller ones. I also made the wheels more accurate.

I don’t have the 22″ Eagle, so I can’t show a photo posed next to one, but here are the Shapeways renderings:

shapeways-22-inch-scaled-moon-buggy-body-rendering-01 shapeways-22-inch-scaled-moon-buggy-seats-wheels-rendering-01

22 Inch Scaled Moon Buggy Body – Comes in yellow, so you don’t have to paint it.

22 Inch Scaled Moon Buggy Seats and Wheels – Comes on a single sprue. Simply clip and glue. Comes in black, so you don’t have to paint it.

I recommend going there and using the 360 degree preview (blue box in the image row).

Here are some images of the same model, printed on my own home printer: Even this is pretty darned good, though the Shapeways resolution is higher.

moonbuggy-22-inch-05 moonbuggy-22-inch-08 moonbuggy-22-inch-09 moonbuggy-22-inch-10 moonbuggy-22-inch-03 moonbuggy-22-inch-04 moonbuggy-22-inch-02



Here it is, pictured with two 12″ PE Eagles, alongside the 12″-scaled version.moonbuggy-22-inch-11



Moon Buggy for 12″ AMT/ERTL/Product Enterprise

This version is scaled to go with the 12″ Eagles.

12-inch-scaled-moon-buggy-01

As with the Dinky, it is available in two separate orders from Shapeways:

shapeways-12-inch-scaled-moon-buggy-body-rendering-01

shapeways-12-inch-scaled-moon-buggy-seats-wheels-rendering-01

12″ Scaled Moon Buggy Body – Comes in yellow, so you don’t have to paint it.

12″ Scaled Moon Buggy Seats and Wheels – Comes on a single sprue. Simply clip and glue. Comes in black, so you don’t have to paint it.


Moon Buggy for Dinky

This model is very small, but poses nicely with the Dinky Eagle:

dinky-scaled-moon-buggy-01

The model comes in two parts:

Dinky Scaled Moon Buggy Body – Comes in yellow, so you don’t have to paint it.

Dinky Scaled Moon Buggy Seats And Wheels – Comes on a single sprue. Simply clip and glue. Comes in black, so you don’t have to paint it.




Stun Gun

I make a 1:6 scale Stun Gun available to fit 12″ Action Figures like this one:

shapeways-stun-gun-held-by-brigadier

This gun comes in two pieces for convenience:

shapeways-stun-guns-x4-sfw

Easier to paint this way. Also, the guns themselves can be printed in silver. Some painting will be required to add the colored details. I show one here that I left in white, as a proposed Commander’s Special, or VIP Special version.

shapeways-four-stun-guns

1:6 Scale Stun Gun Bodies (x4)

1:6 Scale Stun Gun Grips (x4)




Mattell Eagle Mini Stun Gun Replacement

The wonderful 3″ Eagle made by Mattell in the 1970s came with figures and scaled hand-weapons. People often lost these.

This is an awfully small size to print, so detail is a bit less than perfect, but if you want replacements for your lost Mattell Eagles, these aren’t bad.

Mattell Replacement Stun Guns




Launch Pads

The 1970s original Moonbase Alpha model kit was inaccurate in many ways, not least of which was the scale of the landing pads. The problems are described in this blog entry from a while back.

moonase-alpha-original-kit-box-cover

The main issue is that there are only 3 pads. There are 5 surrounding Moonbase Alpha, and for those who want to make a more accurate version, you can purchase a version of the landing pad scaled to these original ones.

OLYMPUS DIGITAL CAMERA

OLYMPUS DIGITAL CAMERA

I added a tiny bit of detail. The house now has a docking arm.

shapeways-moonbase-alpha-landing-pad-rendering-01

I made these in two scales – to match the original, oversized landing pads, and I made a version scaled accurately to the rest of the Moonbase model kit parts.

shapeways-landing-pads-both-scales

There was a later re-issue of this kit, just a couple of years ago by MPC/Fundimensions that fixes this problem and provides 5 accurately-scaled landing pads. But if you can’t find that, or need extras:

Moonbase Alpha Landing Pad Original Scale – with docking arm

Moonbase Alpha Landing Pad Accurate Scale – with docking arm






Cargo Crates

I modeled these to fit 44″ Eagles. A lot of people scratch-build these, and I figured they might like a set of crates to fit:

shapeways-44-inch-scale-crates-01

44 Inch Scaled Cargo Crates

I scaled these to fit the Product Enterprise and 12″ Eagle Model Kits, but found the detail gets lost so I didn’t bother putting them up on Shapeways.



Red Special Retro Ray Gun

Concept

Ok, I’m going to confess that I like this one quite a bit.

I started with some small sketches of retro 50s ray guns. When I sketched one in pencil I quite liked, I redrew it in pen, and colored it with colored pens, on graph paper.

red-special-planning-sketch-01

I scanned this image and created an image plane in my 3D modeling software package. I used that as a horizontal guide.

The one thing I didn’t like was the muzzle, so I left that for last, hoping I would come up with a better idea when I got to it.

Assembly

One thing I wanted to do, and added a lot of time to modeling, in this one, was to avoid having to use glue of any kind. This required carefully designing each piece to screw or bolt to previous pieces until it was solidly constructed.

That, and I wanted it to be heavy.

Recently, I created WERBLZ, a series of rolly-aliens, which I hope to make available to the general public soon. To bet these WERBLZ to roll, I used a short carriage bolt.

ss_Carriage_Bolt_221

I sheared the rounded head off to use at the bottom of the WERBLZ to make them wobble. That left the bolts as junk, so instead of tossing those, I decided to keep them for weight in various models I wanted to add weight to.

I started with halves of a handle. Since this was a little too large to print on my Afinia H479 and H480 printers, I cut it into two pieces, using a jig-saw method to attach them nice and tightly.

red-special-handle-bottoms-01

Each half has three screw holes at the top, and three screw holes in the handle itself. Then there were two screw holes to screw the grip panels to.

I needed space to add a trigger, which pulled correctly, and a part for the base of a spring to attach to. This would allow for the trigger to actually work.

Once these elements were placed, the two halves screwed together: (Note I only use two of the three screws to attach the handle halves. No need for the third, but it could be used. I was running short on screws, so I skimped.

red-special-handle-assembled-01

Note the notch at the top, near the rear. This is to slide the body of the gun onto the handle frame. First, the central “heat sink” section is slotted into position:

red-special-heat-sink-01

At this point a 6 inch bolt with a hex head is pushed into a space in the heat sink piece. The hex head fits into a hex aperture, while the bolt comfortably (though snugly) fits through the whole piece. The heat sink section acts as a wrench, in a way. I can rotate the barrel on and the bolt will be held in place by the heat sink.

red-special-rear-section-assembled-01

Four screws screw into the front of the heat sink, and drill into the red rear section. Note the square nubs at the front of the heat sink section. These fit into squares in the main barrel so the barrel won’t spin.

The black dial ring slips over the heat sink, and is allowed to freely rotate. This is a ray intensity dial.

I slipped a bolt inside the rear section for weight too.

red-special-intensity-dial-assembly-01

Next, the main barrel gets its rings:

red-special-barrel-main-stacks-01

Each of the rings (left) slips over the main barrel cone very snugly.

red-special-barrel-main-ring-assembly-01

red-special-barrel-main-ring-assembly-02

The main barrel is complete when all the red rings are in place:

red-special-barrel-main-ring-assembly-03

Here I show the bolt section of the carriage bolt I sheared off eariler (to create the WERBLZ), wrapped in Scotch Tape for friction hold, placed into the main barrel section for heft:

red-special-barrel-main-barrel-weight-01

Then, three more:

red-special-barrel-main-weight-02

Then the main barrel is slipped over the long bolt. The four holes for bolts also meet up with four square plugs on the heat sink section to prevent the barrel from rotating.

red-special-main-barrel-assembly-01

The barrel neck has a slightly smaller cylindrical aperture, with ridges so the bolt can grab on and act like a nut:

red-special-barrel-front-assembly-01

Then the muzzle is attached with a single screw:

red-special-barrel-nozzle-assembly-01

Four small pegs/holes in the neck/muzzle keep the muzzle from rotating.

Then the focus dial at the back is added:

red-special-rear-dial-assembly-01

A single screw holds the dial on:

red-special-rear-dial-assembly-02

A red plug covers the screw, but has a small notch so it can be easily removed if needed.

Last, I put one more carriabe bolt in the gap inside the handle frame, for better weight, then the handle grips are screwed onto the handle frame to form the final product:

red-special-complete-01

So there are 9 #4 3/8 screws, one 6″ bolt, and six sheared carriage bolts.

Prototype

When I was test-fitting and adjusting the model, I printed a version using colors I had that I don’t use much, usually accent colors and highlights, and things that I use for smaller objects. So rather than waste the real colors (which I use a lot and can’t spare as easily) I printed a fully working version (before final adjustments) in a rainbow of colors:

red-special-rainbow-prototype-01

It was a throw-away, but my daughter loved it, and asked for it. So it’s now hers.

Future Plans

Electronics!

I bought some cheap carded laser guns at a dollar store, and they have very loud laser sounds and bright LEDs. I will have to do some wiring and soldering, but with a few changes, I could make this gun electronic.

Problem – The Trigger Sounds Springy

I noticed when I completed the first print that the trigger makes an ugly springy noise like rusty bed springs. I looked at the design again to see if there was anything I could do about it.

red-special-ray-gun-trigger-spring-problem-01

You can see the problem. The handle frame has a post for the grips to screw into. It sits amid the handle right where the spring has to be when the trigger is pulled back. The trigger is basically a lever (with the fulcrum right under my thumb.) The end of the lever inside the gun has to hold the spring, which needs an anchor somewhere else inside the frame. There’s lots of room below it, but not when the post is in the way.

The result is that when you pull the trigger, the spring is raked over that post, making a squeaky noise.

So I tried to figure out a way to remove the spring.

In the past I have made a few things that use magnets as springs:

Space 1999 Stun Gun Settings Switch

OLYMPUS DIGITAL CAMERA

I used three magnets: One in the trigger switch slider (on the right) and there are two under the KILL and STUN settings.

EMP Grenade Plunger

OLYMPUS DIGITAL CAMERA

I used three magnets, one in the plunger, one in the bottom, and one in the base.

So I began to think magnets would be the perfect solution to this problem. I diagrammed out how this would fit into the existing structure. I had to make a few small changes and additions, as well as cut out some gaps for the magnets to fit, but here’s the scheme:

The trigger itself has one magnet, North pole facing upwards.

The handle has a magnet below it to pull the trigger forward. This is also North pole facing upwards for attraction

Then above the trigger a third magnet, South pole up so the two North Poles repel each other as the trigger approaches, for some resistance on the back pull.

red-special-ray-gun-trigger-magnet-diagram-01

A quick test print (in blue and brown) later and here it is:

red-special-ray-gun-trigger-magnet-test-print-01

(Ugly pink tape holding the magnets in place because what really holds them in place is the two halves of the frame screwed together.)

The resulting feel is very nice. No noise, good pull resistance, and retraction.



Tintin On The Moon

Tintin, by Hergé, is a character in a series of comic books from Belgium, beloved the world over. I read them as a kid, and my two favorite ones were a pair of books, in a rare thing for Tintin, a two-parter: “Destination Moon” and “Explorers on the Moon”:

tin-tin-moon-books

A year or so I bought a nice die-cast Jeep (the one on the first cover) and I downloaded and 3D printed the rocket, someone put up on Thingiverse.

But not satisfied, I wanted to make a statue of Tintin in his space suit.

Here it is:

12189801_10153071016431105_5607296879127696805_n 12208704_10153071016496105_2524085349619937784_n 12187668_10153071016596105_2605207907898148152_n 10406440_10153071016551105_2176392486078442578_n

The bubble is a vending machine bubble capsule, which is not terribly transparent, which sucks a little, but it works fairly well.

The figure stands about 8-9 inches in height.

JANI-TOR Updated

Twice now, my JANI-TOR 3D printed robot model has broken. Once I dropped it while carrying it, and once it toppled over seemingly on his own on my bureau. Perhaps he’s a bit front heavy.

This second time, the head came clean off, so I took this opportunity to redo the head.

The original head disappointed me because the whole point of this model is JANI-TOR is contemplating a ball. But my original model was not looking at the ball, he was looking far too up and forward:

jani-tor-02

So I took the opportunity to make an alternate head that is looking towards the ball. Here you see his new head attached, and his old one detached:

jani-tor-heads

There. Fixed it.

Re-Introducing JANI-TOR

bjanitor

In the late 1990s I created a robot in Lightwave, and called him JANI-TOR. The idea was that he was a menial sanitation robot sweeping the floor of a lab he’s not necessarily supposed to be in. His broom bumps a ball (a familiar one to Canadian children in the 1970s, and is NOT, I repeat, NOT the PEPSI logo!) and follows the ball to where it rolls to a halt under a huge Van de Graaf generator, where he reaches down to pick it up as the sparks get increasingly closer to him, and then he stands up, the generator waning, and examines the ball, tosses it in the air where a huge spark disintegrates it, turning it into dust. Undaunted by any of this, JANI-TOR continues about his business.

I put the video together but never did the sound.

This week I decided I wanted to 3D print him. Actually, I decided this many years ago when 3D printing became possible.

This week I remodeled him (can’t find the original Lightwave files), updated a few things, like his hands, and beefed up his feet, and printed him in his broom-carrying, ball-surveying pose.

Here is a tray filled with all of the parts: The dark teal of the original was not available, so I used a lighter version, and I still think he turned out well:

jani-tor-parts-01

And here he is, printed out. As you can see by the parts, it’s all tab and slot connections, and so he’s not articulated. He’s a statue. But a nice one.

jani-tor-01 jani-tor-02

jani-tor-03

I posed his eyes looking a bit too high. I can fix that by printing a new head for a different version.

Note the broom. I could have 3D printed that too, but guess what? Sometimes 3D printing is not the only, and not necessarily ideal, method to make something. This time I used two paint brushes (one for the wooden base, and one for the bristles) and a piece of wooden dowel. The hand has a cylindrical space in it so the broom can slide into place easily.

Here are the movies, one is a walk test, and the other the full video. These are tiny because it was the late 1990s and this size took long enough to render. It was also a test only.

Here is a series of single frames from the animation. Each one mimics the storyboard frame I created for them very closely. I stuck to my storyboard fairly strictly.

shota shotb shotc shote shotf shotg shoti1 shoti2 shoti3 shoth1 shoth2 shotj shotk shotl1 shotl2 shotl3 shotm1 shotm2shotm3 shotn1  shotn2 shoto1 shoto2 shoto3



UFO 04 – Jetson Cruiser

The Jetson Cruiser

This is my latest UFO print:

ufo-04-cruiser-08

Admittedly, I grabbed the idea from this wonderful model I saw on the web:

IMG_3852

I did make my own alterations and adjustments, though.

What I was aiming for was something out of the Jetsons, a flying saucer that invoked a 1950s car feel with fins and chrome lights. I have no chrome, so I was stuck with a gray filament that is called silver but is not.

Here are all of the parts that make up the Jetson Cruiser:

ufo-04-cruiser-parts-01

Assembly

Gluing the bumper to the bottom half:ufo-04-cruiser-assembly-bumper-01

Here the cockpit assembly (console, pilot seat and comfy couch for five passengers) is attached to the bottom of the saucer:ufo-04-cruiser-assembly-cockpit-01

Then the semi-spherical bubble capsule cap is put in place. The fit is so perfect I don’t need to glue it:ufo-04-cruiser-assembly-cockpit-02

Then I blue the six clear translucent lights to the light covers:ufo-04-cruiser-assembly-headlights-01

And I attach those to the body:ufo-04-cruiser-assembly-headlights-02

The tail-light rims go on next:ufo-04-cruiser-assembly-tail-lights-01

Followed by the customary navigational lights, green on the left, red on the right:   ufo-04-cruiser-assembly-running-lights-01

And then the actual tail lights:ufo-04-cruiser-assembly-tail-lights-02

I glue tires into the three wheel housings. Note: These wheels are printed in a flexible black, so they feel like rubber and have some bounce. In a future version I may add axles and allow them to roll:
ufo-04-cruiser-assembly-wheels-01

Inserting the vertical thruster. The thruster is printed in a translucent glow-in-the-dark icy blue. So when it’s glued to the underneath, it shows the orange (and gray from the cockpit) through. To avoid this, I attached a circle of tin foil to reflect light back out:ufo-04-cruiser-assembly-tin-foil-01

Then I glue the thruster in place underneath, and attach the wheels:ufo-04-cruiser-assembly-bottom-01

Now the two halves get joined, for a completed model:ufo-04-cruiser-assembly-main-body-01

The Showroom

ufo-04-cruiser-01 ufo-04-cruiser-03 ufo-04-cruiser-04 ufo-04-cruiser-06 ufo-04-cruiser-07 ufo-04-cruiser-02

ufo-04-cruiser-09



Cute Prototype

When I prototype, I use colors I normally have a lot of, but don’t use a lot of, like purple, pink, neon yellow, etc. In the first print of this model, I used purple and pink with green and white.

It was intended only for fit and to determine what issues the model would have.

But my daughter loved the color scheme and basically demanded it, so it’s now hers. Here it is.

12516134_10153175455856105_787960785_n

New Rocket – Apollo 42

apollo-42-complete-engines-extended-03A couple of years ago I bought a Pegasus Hobbies model kit called “Apollo 27” because it looked awesome. I haven’t built it yet, but I will get to it.  It has these four rocket engines offset from the body with a solid structure holding them in place. I looked at it and thought “Hey, what if they swung in and out?”

apollo-27-box

Apollo 42 is born. (42 – Reference to the Ultimate Answer.)

I changed the design naturally, but I liked the original enough to keep the basic shape.

Here are the parts: One engine has been assembled to show how the parts fit together.

IMG_3896

A bit about the design:

Like many of my rockets, it prints in multiple colors. I design it so that body stripes are individual cylindrical pieces, and I use holes and pegs to align them for gluing (the black mass in the picture is a group of pegs.)

Each hinge arm has a hole in either end. In the body of the rocket and in each engine, there are four hemispherical bumps that the hinge arms get pushed onto. Once in place, this acts as a very solid hinge. In a future design I may change how this works, but for this one it works well. A careful eye can detect that at each end of the hinge arms there is a funneled channel carved in to make sliding these onto the bumps a bit easier (though it’s no easy task.) Once snapped on, however, they work very well.

The number 42 is inlaid using four individually printed numbers, booleaned into the body and angled correctly. I do this by making the letters, the making a cutting tool object that is just a bit larger all around, so the number can slip into the cavity without too much difficulty.

I designed the rocket with two hinged arms for each rocket engine. Each engine retracts to a recessed section of the main body, and extends outward to a maximum distance.

As it is now, each engine can be pulled in and out individually, and because each uses two hinged arms, the angle stays correct as you extend them and retract them.

apollo-42-complete-engines-retracted-03 apollo-42-complete-engines-retracted-04 apollo-42-complete-engines-retracted-01 apollo-42-complete-one-engine-extended-01 apollo-42-complete-two-engines-extended-01 apollo-42-complete-three-engines-extended-01 apollo-42-complete-engines-extended-01 apollo-42-complete-engines-extended-02



I will note that during assembly I came up with a great way of making it so that when you pull out one engine, the other three will also pull out, and in. I will be working on that in the future, perhaps Version 2.0 of Apollo 42.
